Product Description

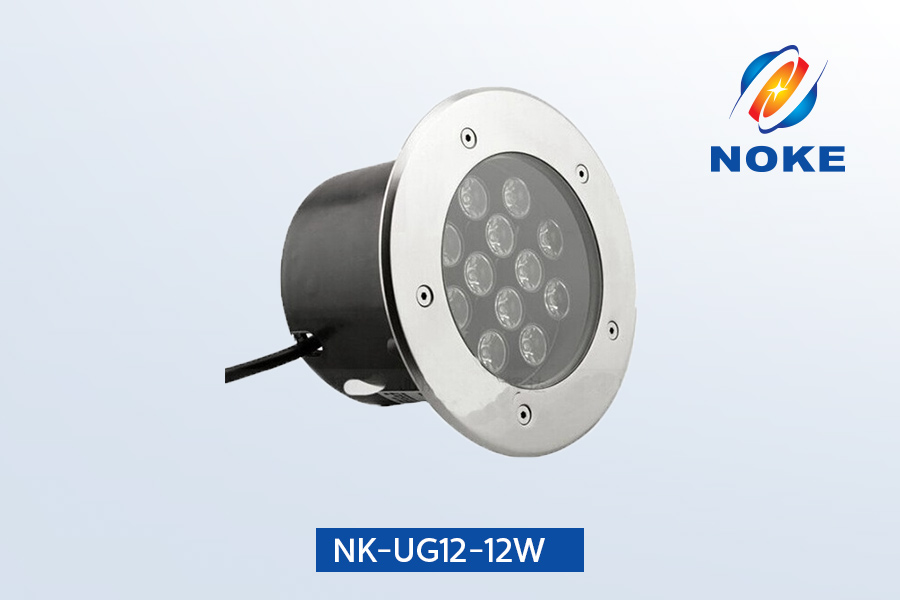

Name: LED Underground Light
Model No: NK-UG12-12W
Certificated by:
LED by:
Powered by: AC100-277V, DC12V/24V
Share this product:
Product Details
Specifications
| Model No. | NK-UG12-12W | Lamp Power | 12 W |
| LED luminous efficiency | 120~140 lm/W | Equivalent | 100 W Traditional light bulb |
| Lamp Rated luminous efficiency | 100 lm/W | Lamp Total Flux(Tj=60℃,Ta=25℃) | 1200 lm |
| Input Voltage | AC100–277 V or DC12V/24V | Frequency Range | 47—63Hz |
| Lamp Efficiency | >93% | Total Harmonic Distortion (THD) | <15% |
| Power Factor (PF) | >0.95 | Color Rendering Index (CRI) | >80 Ra |
| Beam Angle | 10° , 15° , 25° ,30° , 45° , 60° | Color Temperature | 3000k—7000K |
| Waterproof | IP66 | Warranty | 3–5 Years |
| Light Distribution Curve | Rectangular Beam | Lifespan | >50,000hrs |
| Working Temperature | -30℃ ~ +50℃ | Lamp Body and Lampshade Material | Aluminum Alloy and Tempered glass |
| Lamp Size | ￠180X90mm | Net weight | 1.2 kg |
| Application place | Square, park, stadium, lawn, garden, leisure and scenic spot, lakeshore, seaside. | ||
| Notes | Connect DMX512 controller or an RGB controller, Choose a color: red, green, blue, white, amber, RGB, RGBW | ||
