Module Led Street Light with Meanwell Driver – NK-SLW-300W

Name: LED Street Light

Model No: NK-SLW-300W

Certificated by:

LED by:

Powered by:

Specifications

Model No.	NK-SLW-300W	Lamp Power	300 W
LED luminous efficiency	140~160 lm/W	Equivalent	600 W high pressure sodium lamp
Lamp Rated luminous efficiency	140 lm/W	Lamp Total Flux(Tj=60℃,Ta=25℃)	42000 lm
Input Voltage	AC100–277V	Mounting height(m)	20–35 m
Lamp Efficiency	>93%	Total Harmonic Distortion (THD)	<15%
Power Factor (PF)	>0.97	Color Rendering Index (CRI)	>80 Ra
Beam Angle	Horizontal Axis: 155° Vertical Axis: 80°	Color Temperature	3000k—7000K
Waterproof	IP65	Warranty	3–5 Years
Light Distribution Curve	Rectangular Beam	Lifespan	>50,000hrs
Working Temperature	-30℃ ~ +50℃	Lamp Body and Lampshade Material	Aluminum Alloy and PMMA

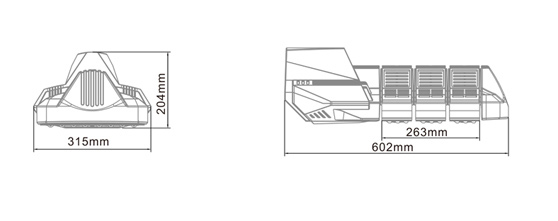

Lamp Size	944 x 315 x 204 mm	Net weight	14.5 kg
Application place	Highways, freight terminals, squares, golf courses, parks, car parks, industrial parks, leisure and tourism scenic spots.
Notes	Dimmable or non dimmable , Body sensor dimming, sensor switch, Illuminated sensor switch , Connect the solar control system.

Parameter

Tab Title

Download Data

Want to ask questions, suggestions or business advice? We would be happy to contact you.

Know more about LED explosion proof light
View more »

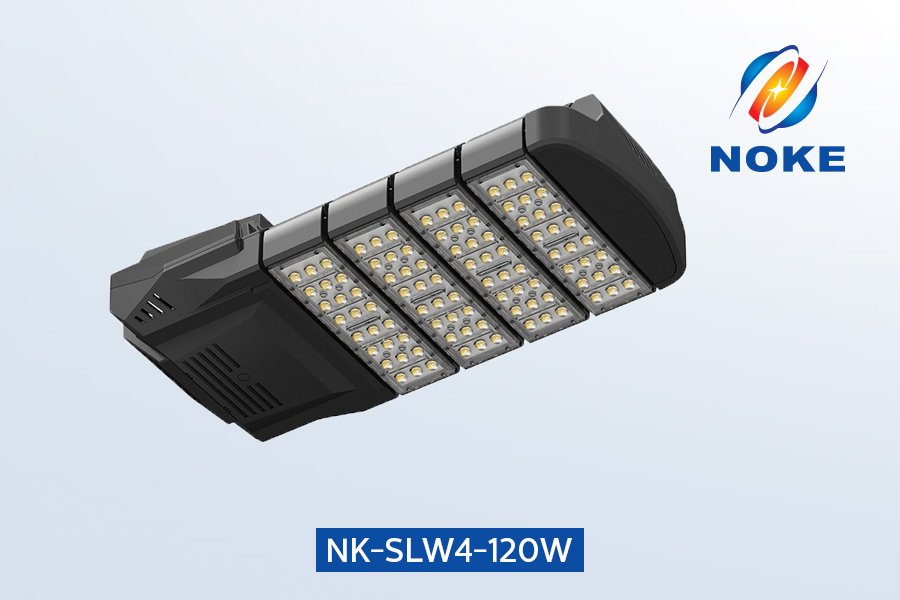

Name: LED Street Light

Model No: NK-SLW4-120W

Certificated by:

LED by:

Powered by: OR High Efficiency Driver

Specifications

Lamp Rated luminous efficiency	110 lm/W	Output Voltage	42V
LED luminous efficiency	140~160 lm/W	Output Current	11000mA
Lamp Total Flux(Tj=60℃,Ta=25℃)	55297 lm	Lamp Power	502.7W
Lamp’s Efficiency	>93%	LED Power	493W
Power Factor	>0.98	THD	<15%
Input Voltage	AC90-305V	Warranty	5Years
Beam Lighting Angle	100°,90°,60°,45°,25°	Guard Level	IP65
Light Distribution Curve	Rectangular Beam	Lifespan	>50,000hrs
Working Temperature	-40℃ ~ +50℃	CRI	>80
