Product Description

Name: LED Wall Washer Light

Model No: NK-WA14-56W

Certificated by: ICON

LED by:  BRIDGEX

Powered by:AC100-277V, DC12V/24V

Share this product:

chat button

Product Details

Specifications
Model No.  NK-WA14-56W Lamp Power  56 W
LED luminous efficiency 120~140 lm/W Equivalent  150 W  high pressure sodium lamp
Lamp Rated luminous efficiency 100 lm/W Lamp Total Flux(Tj=60℃,Ta=25℃)   5600 lm
Input Voltage   AC100–277 V or DC12V/24V Frequency Range   47—63Hz
Lamp Efficiency   >93% Total Harmonic Distortion (THD)   <15%
Power Factor (PF)   >0.95 Color Rendering Index (CRI)   >80 Ra
Beam Angle 10° , 15° , 25° , 30° , 45° , 60° Color Temperature   3000k—7000K
Waterproof  IP66 Warranty 3–5 Years
Light Distribution Curve   Rectangular Beam Lifespan >50,000hrs
Working Temperature   -30℃ ~ +50℃ Lamp Body and Lampshade Material   Aluminum Alloy and Tempered glass
Lamp Size  1000 x 55 x 55 mm Net weight 3.8 kg

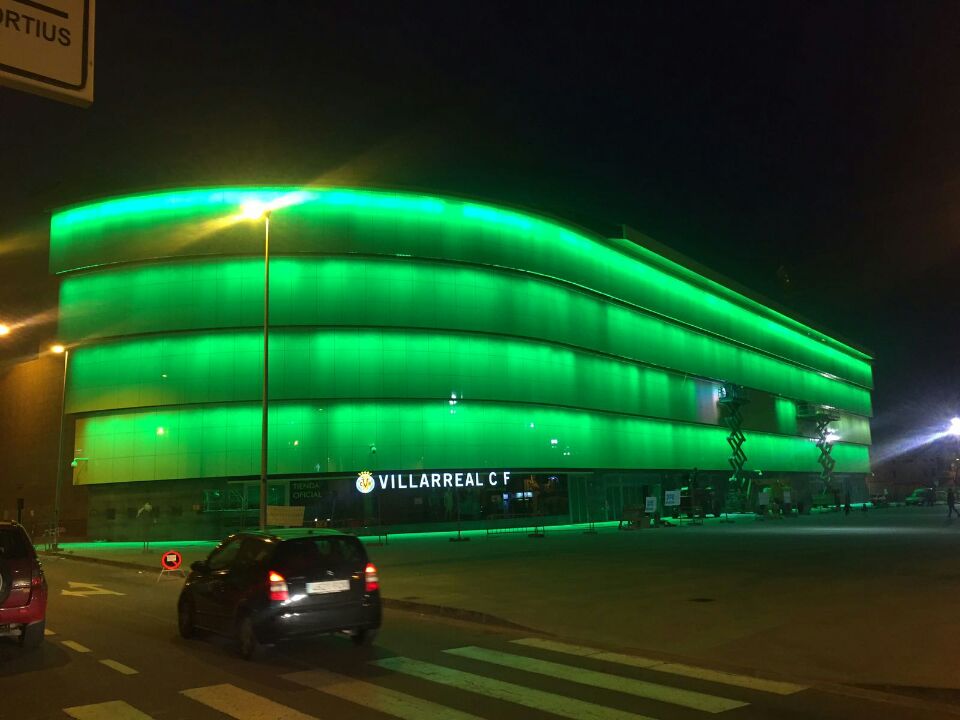

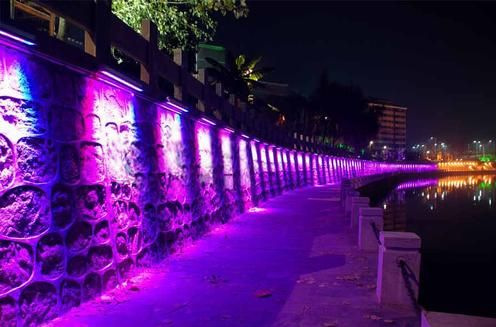

Application place  Square, park, stadium, bridge, building facade, bar, lake fence, seaside.
Notes Connect  DMX512 controller or an RGB controller,  Choose a color: red, green, blue, white, amber, RGB, RGBW
Parameter
Application

led wall washer light

led-wall-washer-light (1)
