Product Description

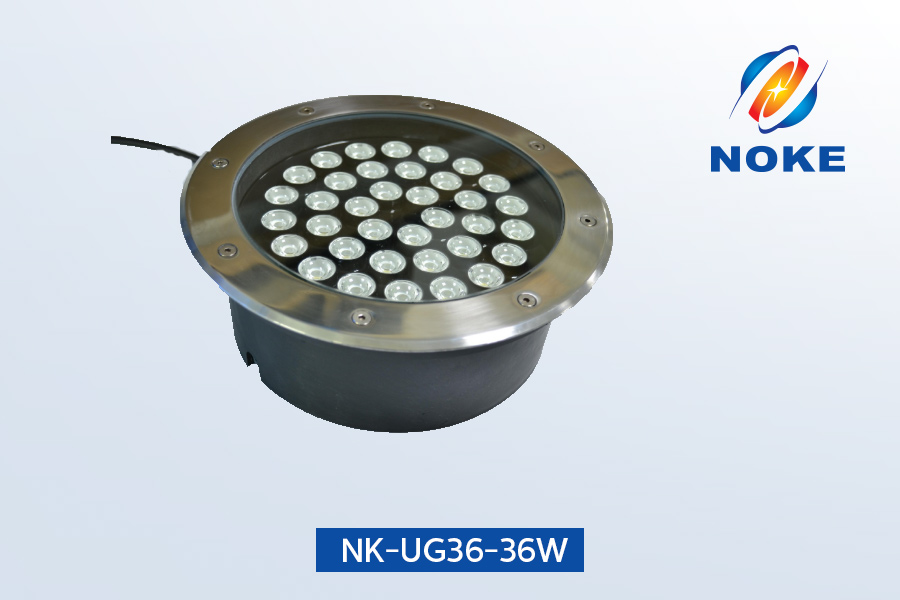

Name: LED Underground Light

Model No: NK-UG36-36W

Certificated by: ICON

LED by:  BRIDGEX

Powered by: AC100-277V, DC12V/24V

Share this product:

chat button

Product Details

Specifications
Model No.  NK-UG36-36W Lamp Power  36 W
LED luminous efficiency 120~140 lm/W Equivalent  300 W  Traditional light bulb
Lamp Rated luminous efficiency 100 lm/W Lamp Total Flux(Tj=60℃,Ta=25℃) 3600 lm
Input Voltage   AC100–277 V or DC12V/24V Frequency Range   47—63Hz
Lamp Efficiency   >93% Total Harmonic Distortion (THD)   <15%
Power Factor (PF)   >0.95 Color Rendering Index (CRI)   >80 Ra
Beam Angle   10° , 15° , 25° ,30° , 45° , 60° Color Temperature   3000k—7000K
Waterproof  IP66 Warranty 3–5 Years
Light Distribution Curve   Rectangular Beam Lifespan >50,000hrs
Working Temperature   -30℃ ~ +50℃ Lamp Body and Lampshade Material   Aluminum Alloy and Tempered glass
Lamp Size ¢300X100mm Net weight 3.8 kg
Application place Square, park, stadium, lawn, garden, leisure and scenic spot, lakeshore, seaside.
Notes Connect  DMX512 controller or an RGB controller,  Choose a color: red, green, blue, white, amber, RGB, RGBW
Parameter
Application

led underground light

led underground light

led underground light
