Product Description
Name: LED Linear Light

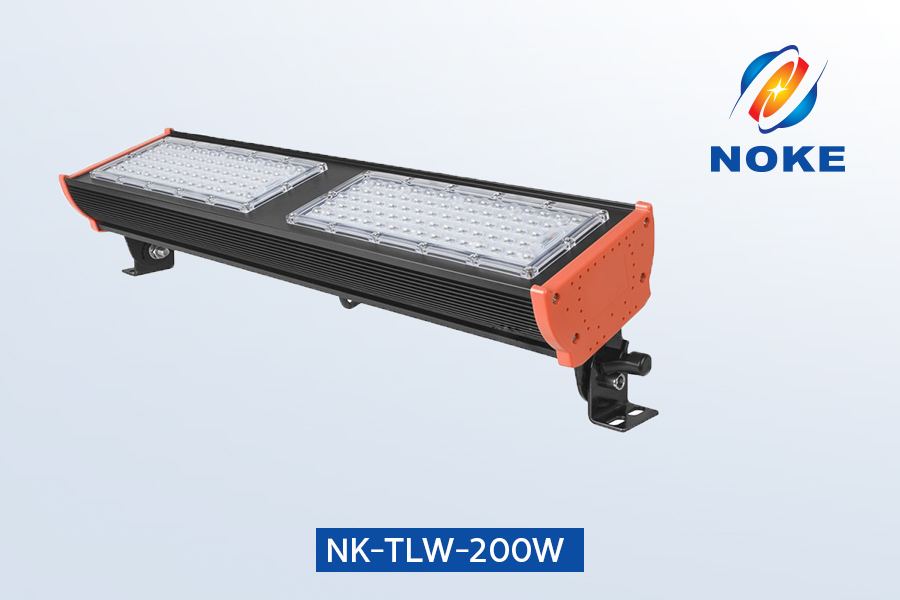

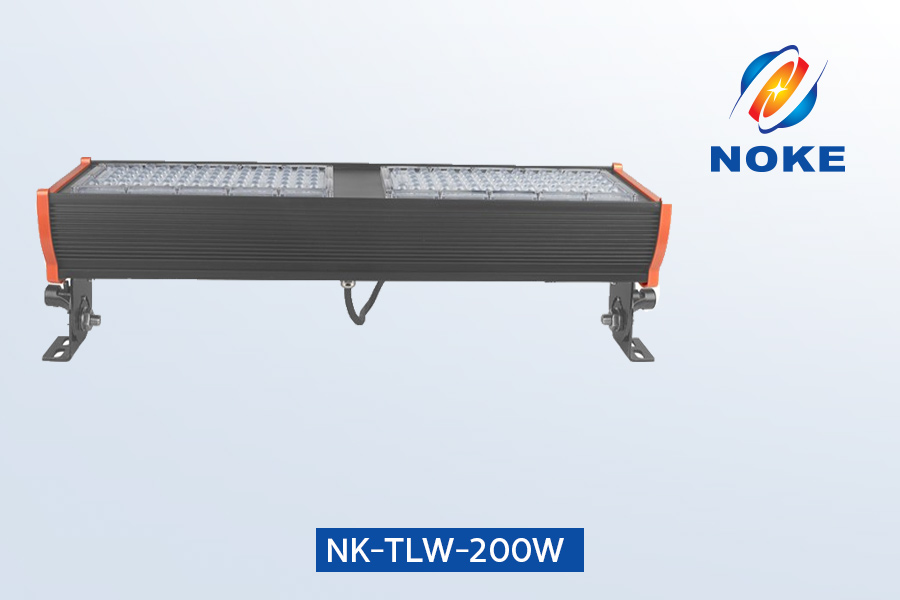

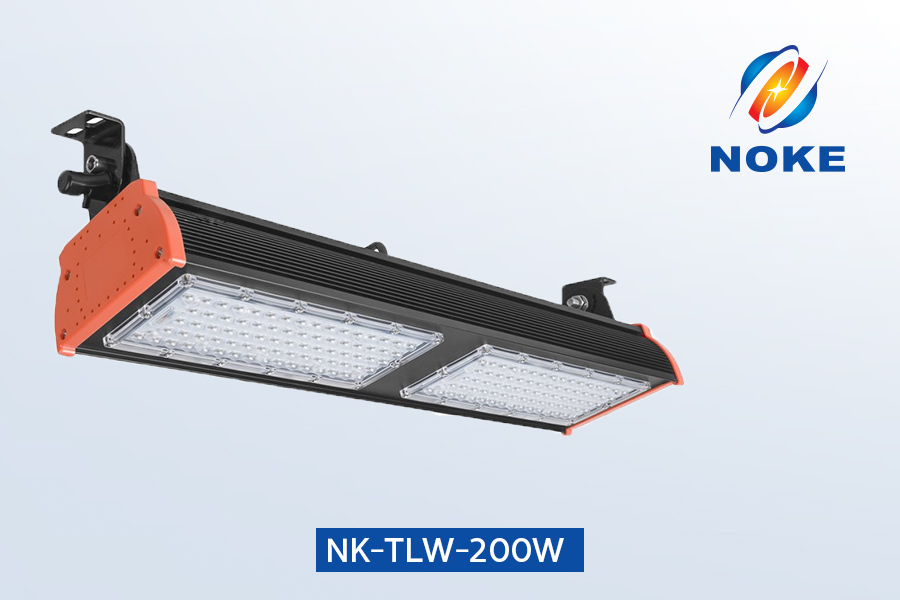

Model No: NK-TLW-200W
Certificated by:
LED by:
Powered by:
Share this product:
Product Details
Specifications
| Item No. | NK-TLW-200W | Lamp Power | 200 W |
| LED luminous efficiency | 140~160 lm/W | Equivalent | 600 W high pressure sodium lamp |
| Lamp Rated luminous efficiency | 140 lm/W | Lamp Total Flux(Tj=60℃,Ta=25℃) | 28000 lm |
| Input Voltage | AC100–277 V | Frequency Range | 47—63Hz |
| Lamp Efficiency | >93% | Total Harmonic Distortion (THD) | <15% |
| Power Factor (PF) | >0.95 | Color Rendering Index (CRI) | >80 |
| Beam Angle | 140° x 80° | Color Temperature | 3000k—7000K |
| Waterproof | IP65 | Warranty | 3–5 Years |
| Light Distribution Curve | Rectangular Beam | Lifespan | >50,000hrs |
| Working Temperature | -30℃ ~ +50℃ | Lamp Body and Lampshade Material | Aluminum Alloy and PMMA |
| Lamp Size | 542X210X180mm | Net weight | 6.5 kg |
| Application place | Commercial lighting, industrial lighting, warehouses, production workshops, freight terminals, stadiums, building facades, | ||
| Notes | Dimmable or non dimmable , Body sensor dimming, sensor switch, Ceiling Mount, Suspend , Wall installation | ||
