Product Description

Name:  UFO High Bay Light

Model No: NK-HBW-100W

Certificated by: ICON ICON

LED by:   philips

Powered by:High Efficiency Driver

Share this product:

chat button

Product Details

Specifications
Item No.  NK-HBW-100W Lamp Power  100 W
LED luminous efficiency 140~160 lm/W Equivalent 300 W  high pressure sodium lamp
Lamp Rated luminous efficiency 140 lm/W Lamp Total Flux(Tj=60℃,Ta=25℃) 14000 lm
Input Voltage   AC100–240 V Frequency Range   47—63Hz
Lamp Efficiency   >93% Total Harmonic Distortion (THD)   <15%
Power Factor (PF)   >0.95 Color Rendering Index (CRI)   >80
Beam Angle   60° , 120° Color Temperature   3000k—7000K
Waterproof  IP44 Warranty 3–5 Years
Light Distribution Curve   Rectangular Beam Lifespan >50,000hrs
Working Temperature   -30℃ ~ +50℃ Lamp Body and Lampshade Material   Aluminum Alloy and PMMA
Lamp Size ¢310X120mm Net weight 3.2 kg
Application place Commercial lighting, industrial lighting, warehouses, freight terminals, stadiums, building facades,
Notes Dimmable or non dimmable , Body sensor dimming, sensor switch,  Ceiling Mount, Suspend ,
Parameter

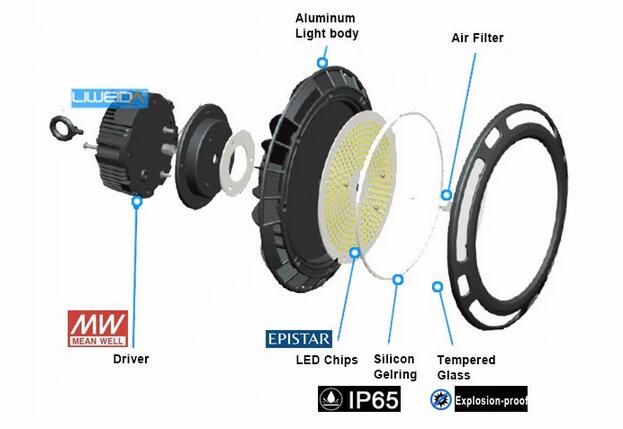

E40 high light parts highbay structure

Application

application-1 application
